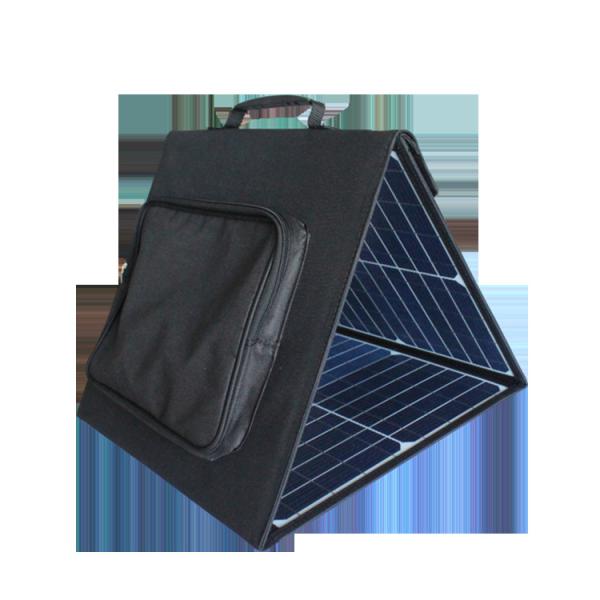

Folding ETFE Layer Solar PV Panel 200w Monocrystalline 1 Year Warranty

Product Categories
SHENZHEN HODAS TECHNOLOGY COMPANY
Contact Now

Folding ETFE Layer Solar PV Panel 200w Monocrystalline 1 Year Warranty

Brand Name : Hochiry

Certification : TUV

Place of Origin : CHINA

MOQ : 100PCS

Payment Terms : T/T, Western Union, MoneyGram

Delivery Time : 20-25 work days

Packaging Details : 27pcs/ per pallet 270pcs/ 1*20' container 648pcs/ 1*40' container

Product name : 200w Folding Solar Panel

Single Solar Pannel Size : 280*185mm

Material : Monocrystalline Silicon

Max. power : 100W

Folding Method : 4 Folds

Front Materia : ETFE Antiskid Surface

Warranty : 1 Year

Expanded size : 390*390*35MM

Max Out Put Power : 18W/24W

Output port : 18VDC & 2 USB 5V

Contact Now

Products Description

High Efficiency Folding Bag ETFE Layer 200 W Monocrystalline Foldable Solar Panels

.
Folding ETFE Layer Solar PV Panel 200w Monocrystalline 1 Year Warranty
Product Paramenters

Engineered with convenience and practicability in mind, HGP, portable solar charger, features portability and

high powerfor easily using outdoor.
Specifications
Component model
HGC-M-4*12.5W
HGC-M-2*40W
HGC-M-8*12.5W
HGC-M-3*40W
Maximum power
50W
80W
100W
120W
Operating voltage(Vmp)
17.8
20.88
17.8
20.88
Curent(lmp)
2.8
3.98
5.62
5.97
Open cicuit voltage(Voc)
21.3
24.64
21.3
24.64
Short-circuit current(Isc)
3.03
4.22
6.07
6.32
Cells Efficiency(%)
18.40%
22.60%
18.40%
22.60%
Operating Temperature(℃):
-40℃~+85℃
Date under standard testing conditions(STC)
1000W/ m2; 1.5Am
Control waterproof
IP 30
Cell brand
MONO
Power temperature coefficient
-0.39%/℃
Vlotage temperature coefficient
-0.29%/℃
Current temperature coefficient
+0.05%/℃
Nominal Operating Cell Temperature
45 ± 2℃
Folding size
355*290*25mm
560*440*15mm
360*295*40mm
560*440*20mm
Weight
2.57kg
1.60kg
4.48kg
2.70kg
Measured at STC Condition: irradiance: 1000W /m2-AM1.5 Spectrum-Temperature: 25℃
Electrical parameters may vary by +-3%
Specifications
Component model
HGC-P-2*55W
HGC-P-4*30W
HGC-M-2*40W
HGC-M-2*40W
Maximum power
110W
120W
Operating voltage(Vmp)
17.8
19.4
Curent(lmp)
6.18
6.18
Open cicuit voltage(Voc)
21
22.9
Short-circuit current(Isc)
6.59
6.59
Cells Efficiency(%)
20.00%
20.00%
Operating Temperature(℃):
-40℃~+70℃
Date under standard testing conditions(STC)
1000W/ m2; 1.5Am
Control waterproof
IP 67
Output power tolerance
± 3℃
Power temperature coefficient
-0.39%/℃
Vlotage temperature coefficient
-0.30%/℃
Current temperature coefficient
+0.039%/℃
Nominal Operating Cell Temperature
45 ± 2℃
Folding size
660*520*15mm
515*395*30mm
Weight
4.30kg
4.36kg
Measured at STC Condition: irradiance: 1000W /m2-AM1.5 Spectrum-Temperature: 25℃
Electrical parameters may vary by +-3%
Folding ETFE Layer Solar PV Panel 200w Monocrystalline 1 Year Warranty

Sunpower portable solar charger
Multifunctional portable solar charger, high efficiency, we have 2*40w and 3*40w two items, provide free power for charging 12v batteries, for example in vehicles and boats, motorhome, caravan, camping, narrow boat, yacht etc, or any other systems with a 12V battery or battery bank.
Folding ETFE Layer Solar PV Panel 200w Monocrystalline 1 Year Warranty

Charging:

Portable solar charging can be used to charge various types of electronic products even when outdoor camping, self-driving Tours, cycling, hiking and other no-electric suppliers are not available.
