FTTH Outdoor Drop Cable Patch Cord , Aerial Self Supporting Fiber Optic Cable

Product Categories
SHENZHEN HODAS TECHNOLOGY COMPANY
Contact Now

FTTH Outdoor Drop Cable Patch Cord , Aerial Self Supporting Fiber Optic Cable

  • 1
  • 2
  • 3

Brand Name : Hochiry

Model Number : GJYXFCH drop fiber optic cable

Certification : CE ROHS

Place of Origin : CHINA

MOQ : 100 Roll

Price : 0.07USD/Meter

Payment Terms : T/T, Western Union, MoneyGram

Delivery Time : 7-10 days

Packaging Details : 1000M per Wooden Roll

Fiber type : G652D ,G657A ,G657A2

Strength member : FRP (Fiber glass reinforced plastic)

Installation tensile : 1200N

Fiber Amount : 1 fiber

Cable Structure : Self-support tight buffer

Jacket : PVC LSZH PE

Contact Now

Ftth Flat Drop Indoor Outdoor Fiber Optic Cable G657A LSZH Fibra Optica Drop Cable

Description:

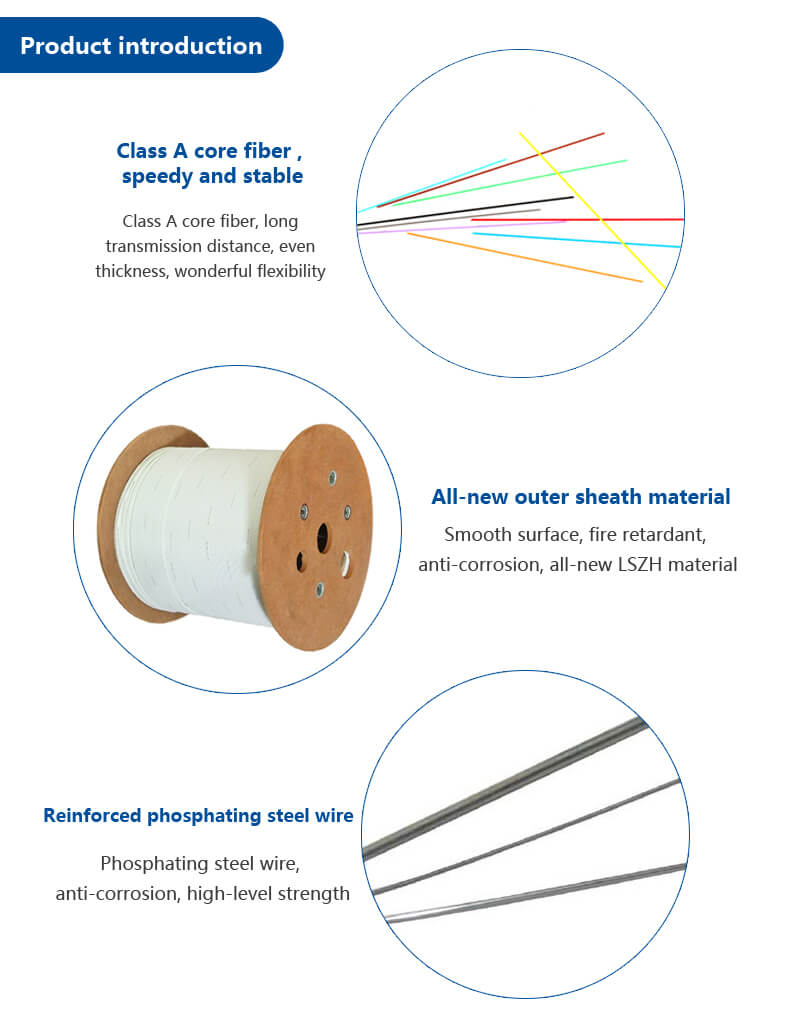

  • The optical fiber unit is positioned in the center.
  • Two parallel Fiber Reinforced Plastics (FRP) are placed at the twp sides.
  • Then the cable is completed with a black or white color LSZH sheath.

Features:

  • Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
  • Two parallel strength members ensure good performance of crush resistance to protect the fiber
  • Simple structure, light weight and high practicability
  • Novel flute design, easily strip and splice, simplify the installation and maintenance
  • Low smoke, zero halogen and flame retardant sheath
  • Simple structure, light weight and high practicability

Application:

  • Used in indoor cabling, especially used for FTTH
  • Used as access building cable

Cable construction details

Items Unit G.657A1 Specification
Mode Field Diameter 1310nm μm 9.0±0.4
1550nm μm 10.1±0.5
Cladding Diameter μm 124.8±0.7
Cladding Non-Circularity % ≤0.7
Core-Cladding Concentricity Error μm ≤0.5
Coating Diameter μm 245±5
Coating Non-Circularity % ≤6.0
Cladding-Coating Concentricity Error μm ≤12.0
Cable Cutoff Wavelength nm λcc≤1260
Attenuation (max.) 1310nm dB/km ≤0.35
1550nm dB/km ≤0.21
Macro-Bending Loss 1turn×10mm radius@1550nm dB ≤0.75
1turn×10mm radius@1550nm dB ≤1.5


Cable mechanical and environment characteristics

Cable code Fiber Cable diameter Cable Tensilse Crush Bedning
Count mm weight Strength Resistance Radius
Kg/km Long/Short term Long/Short term Dynamic/Static
N N mm
GJXFH-1 1 (2.0±0.2)×(3.0±0.2) 8 30/60 300/1000 15/30
GJXFH-2 2 (2.0±0.2)×(3.0±0.2) 8.5 30/60 300/1000 15/30
GJXFH-4 4 (2.0±0.2)×(3.0±0.2) 10 30/60 300/1000 15/30
GJXH-1 1 (2.0±0.2)×(3.0±0.2) 9 30/60 300/1000 15/30
GJXH-2 2 (2.0±0.2)×(3.0±0.2) 9.5 30/60 300/1000 15/30
GJXH-4 4 (2.0±0.2)×(3.0±0.2) 10 30/60 300/1000 15/30

Fiber characteristics

Fiber style Unit SM G652D MM 50/125 OM3-150
Condition mm 1310/1550 850/1300 850/1300
Attenuation dB/km ≤0.36/0.23 ≤3.0/1.0 ≤3.0/1.0
Cladding diameter um 125±1 125±1 125±1
Cladding non-circularity % ≤1.0 ≤1.0 ≤1.0
Coating diameter um 242±7 242±7 242±7


FTTH Outdoor Drop Cable Patch Cord , Aerial Self Supporting Fiber Optic Cable

FTTH Outdoor Drop Cable Patch Cord , Aerial Self Supporting Fiber Optic Cable

FTTH Outdoor Drop Cable Patch Cord , Aerial Self Supporting Fiber Optic Cable
