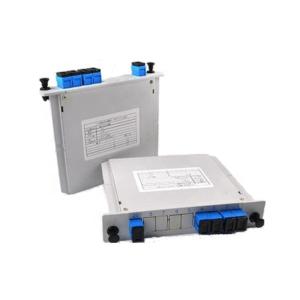

Cassette Fiber Optic PLC Splitter 1x4 G657A1 G657A2 G652D Low Insertion loss

Name: Cassette Fiber Optic PLC Splitter 1x4 G657A1 G657A2 G652D Low Insertion loss
Brand: Hochiry
Price: 6.0 USD

China Cassette Fiber Optic PLC Splitter 1x4 G657A1 G657A2 G652D Low Insertion loss factory

Brand Name : Hochiry

Model Number : DIN 1X4-PLC SC/UPC

Certification : CE ROHS FCC

Place of Origin : CHINA

MOQ : 100PCS

Price : 6.0USD/PCS

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 50000 Pieces per Week

Delivery Time : 5-8 work days

Packaging Details : 1PCS: 26*22*4cm ; 50PCS :65*43*38cm/9.38KGS

Product name : Cassette Type Optical PLC Fiber Splitter

Application : FTTX, FTTH Network

Fiber Type : G657A1,G657A2,G652D

Branchs : 1x4

Wavelength : 1260nm-1650nm

Cable : 0.9/2.0/3.0 mm

Storage temperature : - 45~+85℃

Connector : SC/APC

Insertion loss : ≤0.1dB

Return loss : ≥55dB

Specs : DIN 1X4-PLC SC/UPC, G.657A, Ф900um, 1M

Fiber Mode : Single Mode

Fiber Length : 1m or Customized

Contact Now

DIN 1X4 PLC SC UPC Fiber Optic PLC Splitter 1*4 Type Cassette PLC Fiber Optic Splitter

Insert Cassette Type Optical PLC Fiber Splitter Product Advantages

Low Insertion loss and Low PDL
Uniform power splitting
High reliability
Excellent environmental stability
Compact size and various package
Good delivery time 5-7days
Good product capacity: 20000pcs connector each day

DIN 1X8-PLC SC/UPC LGX Modulized Splitter Insert Cassette Type Optical PLC Fiber Splitter

Planar waveguide light optical distributor (PLC Splitter), is a kind of planar waveguide integrated optical device, it can be 1260nm ~ 1650nm such a wide range of wavelengths of light power reservation in realization, the distribution of wavelength range covers EPON technology used 1310nm, 1490nm and 1550nm three wavelengths. Especially suitable for EPON Ethernet passiveoptical network access technology FTTP fiber network system, broadband passive optical optical
distributor (POS) use.

HODAS provides a various of 1xN and 2xN PLC bare splitters, including 1x2, 1x4, 1x8, 1x16,1x32, 1x64 bare fiber type PLC splitter and 2x2, 2x4, 2x8, 2x16, 2x32, 2x64 Cassette Type Optical PLC Fiber Splitter.

Insert Cassette Type Optical PLC Fiber Splitter Product Application

1)Optical Signal Distribution
2)Data Communications
3)Lan and CATV System
4)FTTX Deployment
5)FTTH Network
6)Passive Optical Networks (PON)
7)Measuring System and Laser System
8)DWDM and CWDM Systems

Insert Cassette Type Optical PLC Fiber Splitter Specification

Cassette Type Optical PLC Fiber Splitter technical specifications
Model name	PSM 1X4 PLC SC/UPC
Wavelength(nm)	1260-1650
Free Sample	YES
Material	PVC;ABS
Design	OEM & ODM
Connectors	FC, SC, ST , LC, LC/APC, SC/APC, MU and FC/APC
Connectors	fiber optic connectors are available
Parameters	1x2	1x4	1x8	1x16	1x32	1x64	1x128
Insertion Loss (dB)	≤4.2	≤7.4	≤10.7	≤13.9	≤17.2	≤21.5	≤24
PDL (dB)	≤0.2	≤0.2	≤0.3	≤0.3	≤0.3	≤0.4	≤0.5
Uniformity (dB)	≤0.6	≤0.8	≤0.8	≤1.0	≤1.5	≤2.0	≤2.0
Return Loss (dB)	≥50
Directivity (dB)	≥55
Temperature Range (°C)	-40~+75
Storage Temperature (°C)	-40~+85
NOTE: The above parameter is for splitter with connector, if w/o connector, insertion loss will reduce by 0.2dB.
