MCJ200 Solar PV Junction Box 300W 1000V DC UL94 V0 Flame Class Waterproof

Product Categories
SHENZHEN HODAS TECHNOLOGY COMPANY
Contact Now

MCJ200 Solar PV Junction Box 300W 1000V DC UL94 V0 Flame Class Waterproof

Brand Name : Hochiry

Model Number : GF20X

Certification : TUV

Place of Origin : CHINA

MOQ : 100Pcs

Price : 3.5USD/PCS

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 50000 Pieces per Week

Delivery Time : 3-5 days

Packaging Details : Standard carton(500sets/ctn), 21g/set N.W:10.8KG G.W:11.3KG Size: 40*26*31cm

Product Name : Solar PV Junction Box

Power : 300W

Safety Class : Class I I

Rated Voltage : 1000V DC

Flame Class : UL944-V0

Waterproof protection : IP67

Rated Currrent : 25A

Contact Now

MCJ200 300W 1000V DC UL94 V0 Flame Class Waterproof Solar Photovoltaic Junction Box

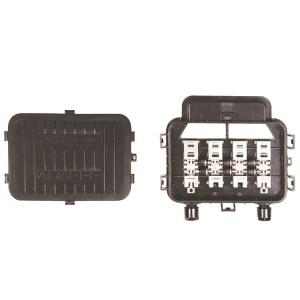

Main View
Solar Panel Junction Box Is Used For Solar PV Panel Connection, It has Diode, Cable, Junction Box Body, Connector. This J-Box Is 1 Diode, Suitable For 50W-100W Solar Module
Features:
1. Certification, TUV, CE, RoHS
2. 25 Years Warranty
3. Back Body Stick To Panel Directly, Very Convenient To Install
4. Already Fit With Solar Connector and Wires Connection
Technical specifications:
Model Number
GF20X
Certification Number
TUV: R50348429
Rated Voltage
TUV 1500V ,UL 1000V, CSA 1500V DC
Temperature Range
-40C to +85C
Safety Class
Class II
Protection Degree
IP67
Wire Size Range
4mm2, 12AWG, 1Meter
Flame Resistance
V-0, 5VA
Waterproof Range
Potting Sealant
Volume Of Silicon Gel
24 ml
Width Of Copper Ribbons
Up to 8mm for soldering
Connection Method
Soldering
Insulation Material
PPE+PS/PA
Contact Material
Copper Alloy
Overall Size
10x8x16cm
